Feeders

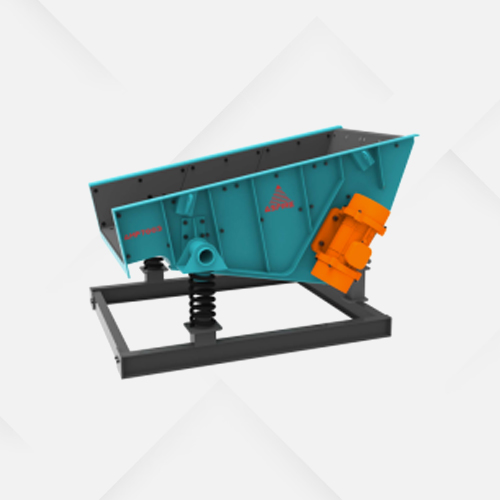

Pan Feeder AM-PF-Series
Aspire Pan Feeders are designed for high capacity feeding especially for secondary and tertiary duties. This simple but solid feeder is ideal for feeding material from stockpiles.
Salient Features:
- Aspire Pan Feeders have been designed to operate in the toughest applications and conditions.
- High wear-resistant body and high-quality vibrators ensure efficiency, stable feeding, and effective long-term operation with minimal breakdowns.
- Versatile design can be mounted on support springs, depending on the location and application.
- High-capacity vibrator motors generate up to 8mm stroke for maximum production in most materials, ranging from small granular materials to large lumps produced from primary crushers.
Technical Data
| AMP-0502 | AMP-0503 | AMP-0703 | AMP-0704 | AMP-0804 | AMP-1105 | |
|---|---|---|---|---|---|---|
| Feeder Length (ft) | 5 | 5 | 7 | 7 | 8 | 11 |
| Feeder Width (ft) | 2.5 | 3 | 3 | 4 | 4 | 5 |
| Capacity (TPH) | 60-100 | 100-150 | 150-200 | 200-300 | 300-500 | 500-800 |
| Motor Power (kw) | 2x1.125 | 2x1.5 | 2x2.25 | 2x3.75 | 2x5625 | 2x7.5 |
| Motor Power (hp) | 2x1.5 | 2x2 | 2x3 | 2x5 | 2x7.5 | 2x10 |
| Feed Size (mm) | 100 | 100 | 150 | 200 | 250 | 300 |
| Feed Size (inch) | 4 | 4 | 6 | 8 | 10 | 12 |

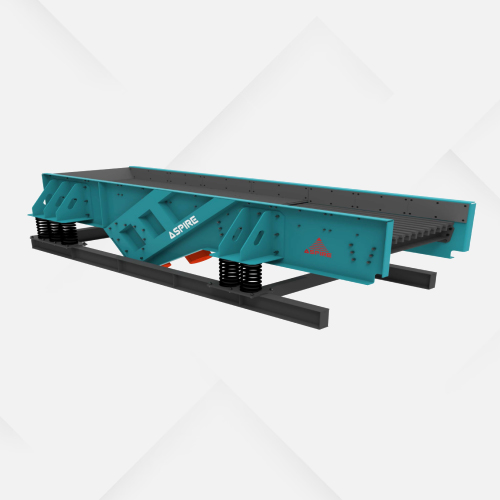

Grizzly Feeder AM-GF-Series
Aspire Grizzly Feeders are designed for Portable and Stationary use as well as surface and underground operations for abrasive or soft rock and gravel, slag or other recycling and industrial materials. These feeders are compatible with wide range of crushing equipment.
Salient Features:
- Easy installation & maintenance.
- Less down time.
- Stress-relieved motor base.
- Long-life wear parts.
- Wear-resistant grizzly liners.
- Flexible & reliable in operation.
Technical Data
| AMGF-1303 | AMGF-1404 | AMGF-1505 | AMGF-1805 | AMGF-2006 | |
|---|---|---|---|---|---|
| Feeder Length (ft) | 13 | 14 | 15 | 18 | 20 |
| Feeder Width (ft) | 3 | 3'8" | 4'4" | 5 | 5'4" |
| Capacity (TPH) | 200-250 | 350-400 | 400-500 | 500-600 | 600-700 |
| Motor Power (kw) | 2x3.5 | 2x4.3 | 2x6.2 | 2x8 | 2x15 |
| Motor Power (hp) | 2x5 | 2x6 | 2x8 | 2x11 | 2x22.5 |
| Feed Size (mm) | 400 | 650 | 800 | 900 | 1000 |
| Feed Size (inch) | 16 | 26 | 32 | 36 | 40 |
