Vibrating Screen

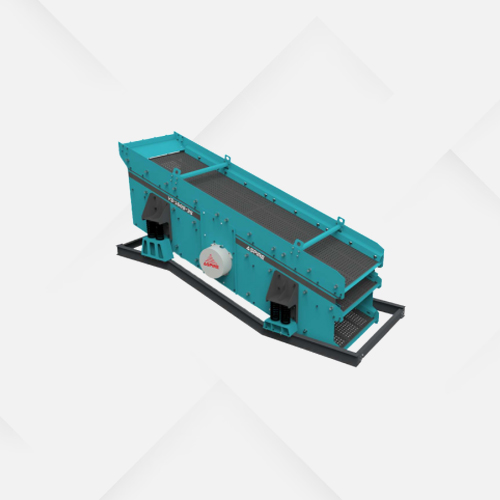

Modular Vibrating Screen [AM-MVS-Series]
Aspire MVS Screens are Versatile. They can be used for primary, secondary and Teritary screening. VS Screen Standard slope angle is 18 Degree but can be modified for special applications. It can be used for wet screening fitted with spray pipes.
Salient Features:
- High screening capacity and excellent smooth performance.
- Circular motion modular vibrators with two bearings per vibrator, interconnected by a cardan shaft.
- Unique angle of the circular motion VS screen enables higher productivity.
- Modular design is available in 1, 2, 3, and 4-deck configurations, offering excellent segregation to meet the needs of the aggregates and mining industries.
- Stroke adjustments through counterweight; grease lubrication system ensures easy and low maintenance.
- Easy to install.
Technical Data
| AMVS-1405 | AMVS-1606 | AMVS-2006 | AMVS-2007 | |
|---|---|---|---|---|
| Screen Size (mm) | 4200 x 1500 | 4500 x 1800 | 6000 x 1800 | 6100 x 2100 |
| Screen Size (ft) | 14 x 5 | 16 x 6 | 20 x 6 | 20 x 7 |
| Screen Area (Sq ft) | 70 | 96 | 120 | 140 |
| Motor Power (kw) | 11 | 15 | 22.5 | 22.5 |
| Motor Power (hp) | 15 | 20 | 30 | 30 |
| Capacity (TPH) | 310 | 400 | 600 | 780 |
| No of Decks | 1/2/3/4 | 2/3/4 | 2/3/4 | 2/3/4 |
| Weight (kg) | 2250/3500/4200/5100 | 4000/5400/6300 | 5000/6700/8000 | 12000/13500 |
| Weight (Tons) | 2.25/3.5/4.2/5.1 | 4.0/5.4/6.3 | 5.0/6.7/8.0 | 12.0/13.5 |

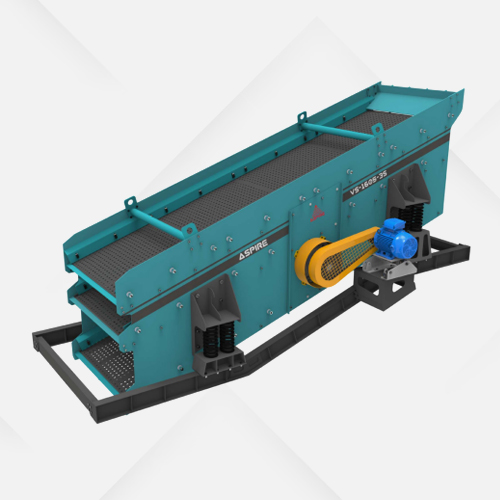

Vibrating Screen [AM-VS-Series]
Aspire Vibrating Screens can be used in Variety of ways. Primary, Secondary and Tertiary Screening can all be done using them. Screening media wil be provided as per customer required stone size.
Salient Features:
- Low operational cost.
- Less maintenance.
- Screen design is available in 1, 2, 3, and 4-deck configurations, offering excellent segregation to suit the aggregates and mining industries' requirements.
- Improved material processing with high screening efficiency.
- Easy to install.
Technical Data
| AVS-1005 | AVS-1204 | AVS-1205 | AVS-1405 | AVS-1605 | AVS-1806 | AVS-2006 | |
|---|---|---|---|---|---|---|---|
| Screen Size (mm) | 3000 x 1500 | 3600 x 1200 | 3600 x 1500 | 4200 x 1500 | 4800 x 1500 | 5400 x 1800 | 6000 x 1800 |
| Screen Size (ft) | 10 x 5 | 12 x 4 | 12 x 5 | 14 x 5 | 16 x 5 | 18 x 6 | 20 x 6 |
| Screen Area (Sq ft) | 50 | 48 | 60 | 70 | 80 | 108 | 120 |
| Motor Power (kw) | 7.5 | 7.5 | 11 | 11 | 11 | 18.75 | 22.5 |
| Motor Power (hp) | 10 | 10 | 15 | 15 | 15 | 25 | 30 |
| No of Decks | 2/3 | 2/3 | 3/4 | 3/4 | 2/3/4 | 2/3 | 2/3 |
| Weight (kg) | 2200/2700 | 2200/2500 | 1960/2650/3180 | 2560/3310/4300 | 2890/3810/4700 | 3250/4400/5430 | 5210/5810/6500 |
| Weight (Tons) | 2.2/2.7 | 2.2/2.5 | 1.96 | 2.65/3.1 | 2.56 | 3.25/4.45/5.43 | 5.21/5.81/6.5 |
| 5.21/5.81/6.5 | |||||||
