Cyclone Washer [AM-HCW-Series]
Hydrocyclone Washer
Aspire Cyclone Washer is designed to ensure maximum efficiency from the washing unit. It facilitates the extremely accurate separation of silts and clays from the final washed sand products (M-Sand & P-Sand). It is employed in the production of specialised sands.
Salient Features:
- Hydro-cyclone is fully lined with PU material, which helps improve lifespan and efficiency.
- Feed box with high-quality wear-plate material impacts directly onto the screen deck, increasing operational life.
- Secondary pump is not required as the system eliminates slurry pressure with the help of its high discharge point.
- Modular construction allows for application flexibility for sand and ores.
- Custom cyclone options are available for enhanced recovery.
- High G force ensures better dewatering and water recovery.
Technical Data
| AMHCW-50 | AMHCW-100 | AMHCW-150 | AMHCW-200 | AMHCW-250 | |
|---|---|---|---|---|---|
| Max Feed Size (mm) | -5mm | -5mm | -5mm | -5mm | -5mm |
| Capacity (TPH) | 25-30 | 60-80 | 90-110 | 120-160 | 180-210 |
| Slurry Pump Power (hp) | 15 | 20 | 40 | 50 | 60 |
| Dewatering Screen Power (hp) | 2x2 | 2x3 | 2x5 | 2x7.5 | 2x10 |
| No of Hydrocyclone | 1 | 1 | 1 | 1 | 2 |
| Flow Rate (m3/hr) | 65 | 130 | 220 | 250 | 320 |

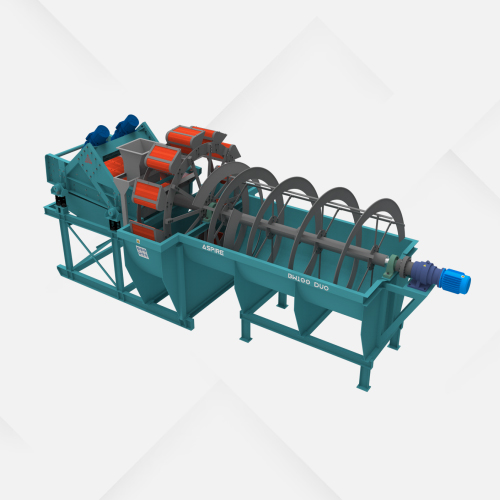

Bucket Washer
Aspire's Dual sand washing machine is a wheel bucket type and are mainly used for washing, classification of end products M-Sand & P-Sand very low energy consumption and low maintenance cost.
Salient Features:
- Simple but noble design of the body and supporting structure makes the plant user friendly and esay to maintain.
- Bucket wheel and spiral arrangements to control percentages of fines.
- Power optimized Vibro-motor, low power motor with planetary gear box help in reducing running cost.
- High frequency dewatering screens with polyurethane mats.
